Nickel Alloy Steel Pipe Fittings Butt Welding Cap N04400 5" ASME B16.9

  • 1
  • 2

Brand Name : TOBO

Model Number : N04400

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : China

MOQ : 1pcs

Price : Depending on quantity

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10 ton/month

Delivery Time : 15-30 days depending on quantity

Packaging Details : Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc

Name : Nickel Alloy Steel Pipe Fittings

Material : Nickel Alloy Steel

Head code : Round

Connection : Welding

Type : Cap

Contact Now

Nickel Alloy Steel Pipe Fittings Butt Welding Cap N04400 5" ASME B16.9



Introduction

Butt welded pipe cap is a pipe fitting welded to the end of the steel pipe to cover and plug the pipe. It is used to close the pipeline, and its function is the same as that of pipe plug and plug. The appearance of butt welded pipe cap is various, mainly including convex, conical shell, reducing section, flat cover and tight mouth


Overview and features:Alloy 625

Typical application areas:



1. Components of organic chemical process containing chloride, especially when acidic chloride catalyst is used



2. Digester and bleaching tank for pulp and paper industry



3. Absorber, reheater, flue gas inlet baffle, fan (wet), agitator, deflector and flue in flue gas desulfurization system



4. For manufacturing equipment and components used in acid gas environment



Pipe Fittings :Butt Welding Cap 8" SCH40 Alloy 625 ASTM/UNS N06625
MATERIAL Carbon Steel :
  ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn,
  DIN St37, St45.8, St52.4,St.35.8,St.35.8.
  Stainless Steel:
  1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti
  00Cr17Ni14Mo2 304 304L 316 316L
  Alloy Steel:
  16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,
  A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70
STANDARD ASTM / JIS / DIN / BS / GB/GOST
MODEL 1.Tee(Straight )
  2.Tee(Reducing)
TYPE Seam Or Seamless
SURFACE Black Paint, Anti Rust Oil, Hot-Dipped Galvanize
WALL THICKNESS SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60,
  SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM
SIZE 1/2"-48"(Dn15-Dn1200)
CONNECTION Welding
SHAPE Equal, Reducing
CERTIFICATE ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
APPLICATION Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
RELATED PRODUCTS 1. Carbon steel nipples and sockets 2. Flanges
  3. Malleable iron pipe fittings 4. Pipes
  5. High-pressure fittings 6. Valves
  7. P.T.F.E .thread seal tape 8. Brass fittings
  9. Ductile iron pipe fittings 10. Copper fittings
  11. Sanitary fittings, etc,. 12. Grooved fittings
Customers’ drawings or designs are available.
PACKAGE 1> 1/2" - 2" in cartons.
  2>Above 2" in wooden cases.
  Big size is workable by pallets.
DELIVERY DETAILS According to the quantities and specifications of each order.
  Normal delivery time is from 15 to 30working days after receiving the deposit.



Nickel Alloy Steel Pipe Fittings Butt Welding Cap N04400 5" ASME B16.9Nickel Alloy Steel Pipe Fittings Butt Welding Cap N04400 5" ASME B16.9


Buy cheap Nickel Alloy Steel Pipe Fittings Butt Welding Cap N04400 5" ASME B16.9 product

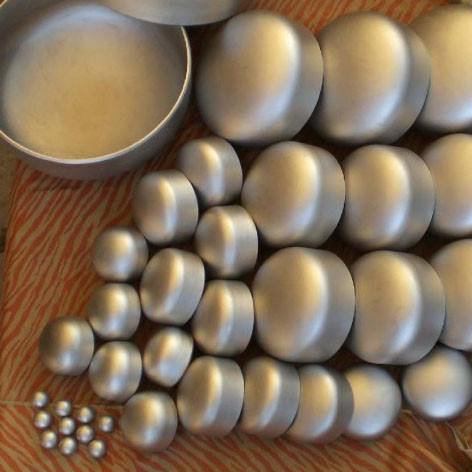

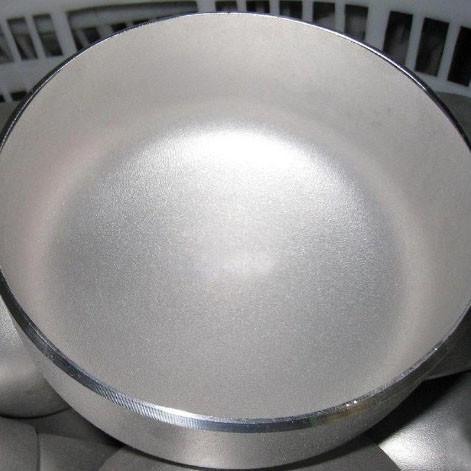

Nickel Alloy Steel Pipe Fittings Butt Welding Cap N04400 5" ASME B16.9 Images
