Austenitic Stainless 316L WN Flange ASME B16.5 UNS S31603 150# 8" Flanges

  • 1
  • 2
  • 3

Brand Name : Brand Name:

Model Number : Weld Neck Flanges

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1500 piececs per month

Delivery Time : 15-20 days

Packaging Details : Standard Packing

Product Name : Weld Neck Flanges

Size : 8“

Material Grade : Austenitic stainless

Standard : ASME B16.5

Class : 150#

Contact Now

Austenitic stainless 316LWN Flange ASME B16.5 UNS S31603 150# 8" Flanges



flangeType Austenitic stainless 316LWN Flange ASME B16.5 UNS S31603 150# 8" Flanges
Standard ASME/ANSI B16.5
Size 8”
Pressure Rate 150lb to 2500lb
Manufacturing process Push, Press, Forge, Cast, etc.
Material Austenitic stainless
Carbon steel ASTM A 105

Allloy steel flange



ASTM A182 F5; F11;F22;F91;F51

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8

Stainless Steel flange



ASTM A182 F304/304H/304L

ASTM A182 F316/316H/316L

ASTM A182 F321/321H

ASTM A182 F347/347H

Nickel Alloys Flanges



 Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys Flange



 Copper, Brass & Gunmetal
Manufacture Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

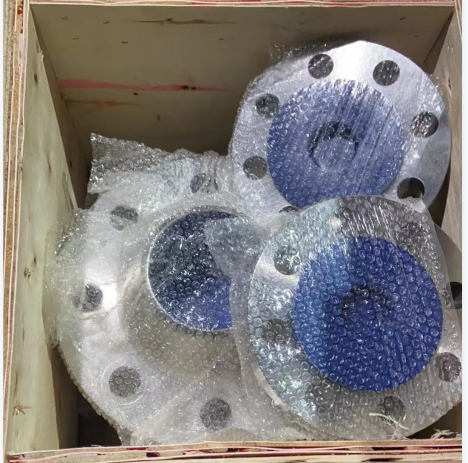

Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 15-20 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Weld Neck Flanges


Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.

Austenitic Stainless 316L WN Flange ASME B16.5 UNS S31603 150# 8" Flanges
