Forged Alloy Steel Flanges Alloy Steel Weldoflange B462 N08020 For Petroleum

Product Categories
TOBO STEEL GROUP CHINA
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Forged Alloy Steel Flanges Alloy Steel Weldoflange B462 N08020 For Petroleum

  • 1
  • 2

Brand Name : Metal

Model Number : B462 N08020

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : China

MOQ : 1PC

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 PCS PER MONTH

Delivery Time : 15 Work days

Packaging Details : In wooden case, pallets or as per customers' requirement

Product Name : WeldoFlange

Type : Forged Flange

Material : ASTM BB462 N08020

Standard : ASME

Usage : Petroleum

Size : 2" x 1.1/2"

Pressure : 150#

MOQ : 1PC

Contact Now

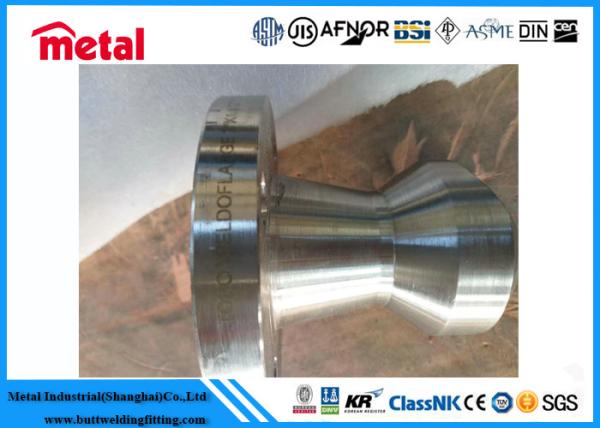

Nickel Alloy Steel Flanges WeldoFlange NipoFlange B462 N08020 2" x 1.1/2" 150#



ASME/ANSI B16.5 stainless steel RF nipo-flange


Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.

A Nipoflange is a combination of weldolet, nipolet and flange.

Two different pipe branch connections

On the run pipe side a nipoflange is designed like a weldolet. That means the branch connection

on the run pipe side is a welding connection. On the other side there it has a flange connection.

The flange connection can be designed according to customers requirements (acc. To DIN or ANSI).



Product Description



Product Name Weldo Flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Special Flange: According to the drawing Picture
Materials

Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L, UNS S32750, UNS S32760
Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55, UNS S31803, UNS S31254
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

ASTM A516 GRADE 70
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages

1. Abundant stock and prompt delivery

2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.

4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.)



Alloy Ni C Mn Fe S Si Cu Cr Al Ti Nb Mo
Nickel 200 99.5 0.08 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Nickel 200 99.5 0.01 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Monel 400 66.5 0.2 1 1.2 0.01 0.2 31.5 -- -- -- -- --
Monel 401 42.5 0.05 1.6 0.4 0.008 0.1   -- -- -- -- --
Monel K500 66.5 0.1 0.8 1 0.005 0.2 29.5 -- 2.7 0.5 -- --
Inconel 600 76 0.08 0.5 8 0.006 0.2 0.2 15.5 -- -- -- --
Inconel 601 60.5 0.05 0.5 14.1 0.007 0.2 0.5 23 1.4 -- -- --
Inconel 718 52.5 0.04 0.2 18.5 0.008 0.2 0.2 19 0.5 0.9 5.1 3
Inconel X-715 73 0.04 0.5 7 0.005 0.2 0.2 15.5 0.7 2.5 1 --
Incoloy 800 32.5 0.05 0.8 46 0.008 0.5 0.4 21 0.4 0.4 -- --
Incoloy 803 32.0-
37.0		 0.06-
0.10		 ≤1.5   ≤0.015 ≤1.0 ≤0.75 25.0-
29.0		 0.15-
0.60		 0.15-
0.6		 -- --
Incoloy 825 42 0.03 0.5 30.4 0.02 0.2 2.2 21.5 0.1 0.9 -- 3



Other Products



Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

Incoloy Alloy Steel Flange : ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT

Hastelloy Steel Flange: ASTM AB564 , C276/ NO10276 , Monel Alloy 400 /NO4400, K500/NO5500,



APPLICATIONS



Applications include chemical processing, pollution control, oil and gas
recovery, acid production, pickling operations, nuclear fuel reprocessing, and handling of radioactive wastes.



Packaging & Shipping



Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China
